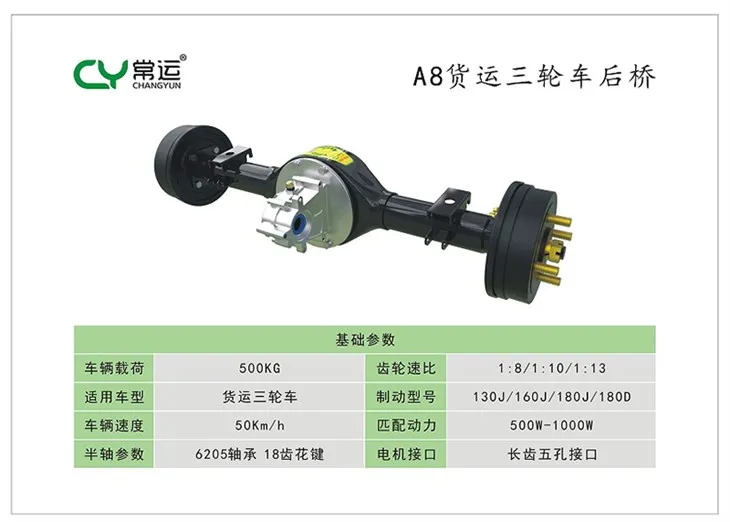

Basic parameters
|
Vehicle load |
500kg |
Gear speed ratio |
1:8/1:10/1:13 |
|
Applicable model |
Freight transport tricycle |
Brake model |
130J/160J/180J/180D |
|
Vehicle speed |
50Km/h |
Matching power |
500W-1000W |
|
Parameters of axle shaft |
6205bearing, 18Teeth spline |
Motor interface |
Five-hole long tooth interface |
Product Introduction and Highlight

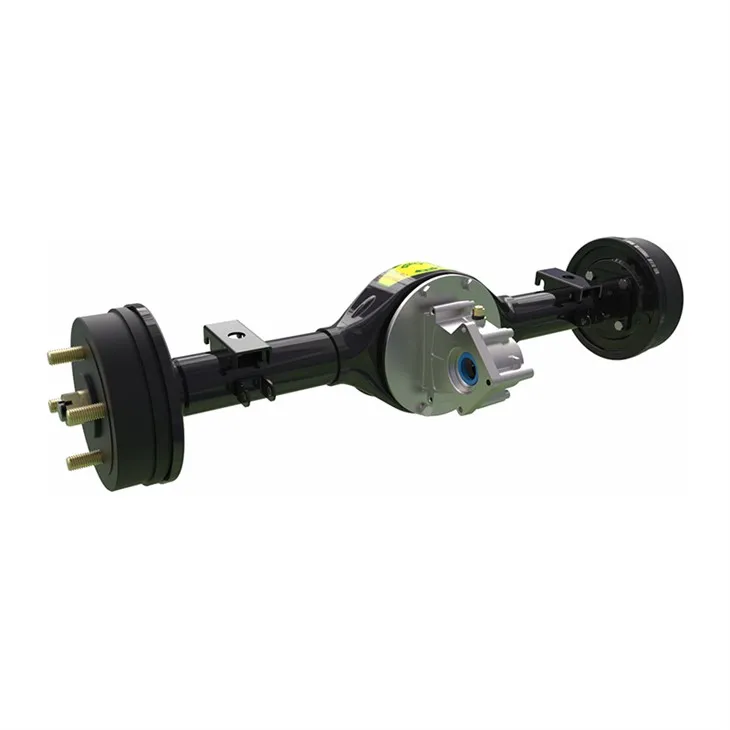

Welcome to the rear axle of Cytricycle. As the core transmission and load-bearing component of tricycle, we are committed to providing products exceeding the standard. The highlights of this product are its strong structural rigidity, optimized (efficient) power transmission efficiency and outstanding environmental adaptability, aiming at providing users with safer, more economical and more durable driving and transportation experience.
Product parameters
| Suitable models |
all kinds of three-way, half-covered, full-covered and leisure tricycle |
| Rated load |
about 15% higher than that of products of the same specification in the market |
| Axle housing material | high strength steel plate punching and welding |
| Main reducer gear |
material upgrade and heat treatment for improved wear resistance |
| Half-shaft type |
taper, full floating (optional) |
| Brake compatibility | support drum brake and disc brake system |
| Surface treatment |
shot blasting, high temperature plastic spraying, rust prevention and durability |
Application of product features
The rear axle of this tricycle is specially designed for demanding environments. Its high load-carrying characteristics make it ideal for high frequency, heavy duty commercial fleets, logistics distribution and building materials transportation. Whether it is paved road in city or rough path in country, it can provide stable power output and reliable support, effectively reduce failure rate and guarantee operation efficiency.
Product details introduction
We strive for excellence in every manufacturing link. Thickened steel plates are used for the bridge body and the weld strength is ensured by robot welding; The gear unit is carburized and hardened, and the tooth surface is hard and wear-resistant; The bearing pedestal is reinforced to cope with heavy torsion. Precision assembly process ensures low noise and smoothness of assembly.
Product technology
All ex-factory rear axles have passed strict bench tests, including fatigue life test, static torsional strength test and tightness test, to ensure compliance with or even exceed the general technical standards of the industry. The reliability and durability of our products have been verified and actively fed back by many long-term partners and end users.
Intimate service
We offer flexible product customization options that can be tailored to your specific model and load requirements. At the same time, we promise fast order response cycle, clear logistics tracking and complete technical document support (including installation dimension drawing and maintenance manual), so that your procurement is trouble-free.
Company Introduction
CYBEST is an innovative technology enterprise focusing on the field of new energy short travel, committed to providing leading solutions and high-quality services for global short-travel tool vehicle applications. With technological innovation as the core driving force, the company has set up a R&D operation center in Changzhou, China, and established modern production and manufacturing bases in Shangqiu, Henan and Feng County, Xuzhou, forming an integrated industrial layout of "R&D + manufacturing". At the same time, the company actively expands the global market, setting up subsidiaries in Shenzhen, Dubai in the Middle East, Bangladesh and other places to build a business network covering domestic and foreign countries.
In 2013, it entered the overseas market, and for 8 consecutive years, the CYBEST driving product series became the first market share in India.

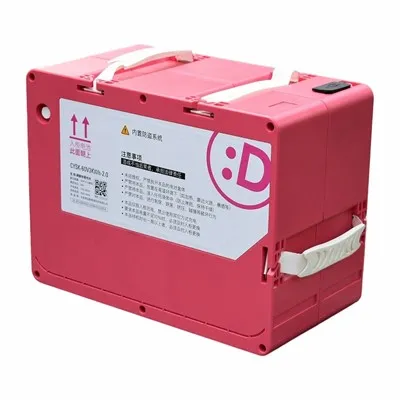

The tricycle rear axle produced by CYBEST is used for recreational tricycles, passenger tricycles, cargo tricycles and other tricycles; The lithium batteries produced by the company are used in two-wheeled electric vehicles or three-wheeled electric vehicles; The company produces intelligent battery charging and swapping cabinets; It supports customized adaptation to meet different models, and is a supplier of accessories for various tricycles or two-wheeled electric vehicle manufacturers.
CYBEST manufacturing factory strictly follows the ISO9001 quality management system, adheres to the concept of quality first, and promotes the upgrading of intelligent manufacturing. Introduce advanced automated production lines, build intelligent and information-based efficient production operation systems, and implement refined production management. With an annual production capacity of more than 10,000 units, quality control above industry standards ensures that every product reaches excellent quality. Through "intelligent" manufacturing, we not only improve production efficiency but also provide customers with a fast and reliable delivery guarantee for charging and swapping cabinets.
