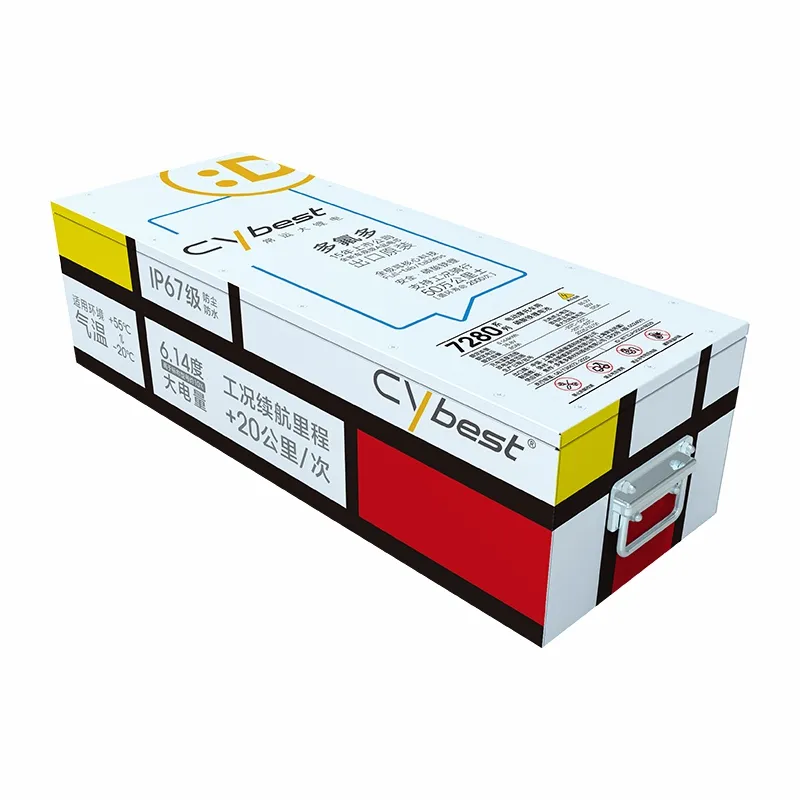

Mofang 100 Series 72V80A Lithium Ion Battery

The 72V80A lithium iron phosphate battery produced by CYBEST has outstanding advantages: it adopts 3.2V80Ah LFR48168 cell, 2P24S structure, the maximum discharge current is 120A, and it is suitable for ≤ 3000W electric motorcycle, with abundant power; The cycle life is more than 2000 times, the charging, discharging and storage temperature range is wide, and the weather resistance is strong
Send Inquiry

Product Introduction

Scenario application

72V Electric motorcycle

Charging mode

RS485

Motor power

≤3000W

Intelligent security

High and low temperature protection for overvoltage, undervoltage, short circuit, etc

Charging temperature

-20~+50℃

Near-field communication

Bluetooth+RS485

Discharge temperature

-20~+60℃

Far-field communication

No

Storage temperature

+20~+60℃

size

620*230*177.5mm

Waterproof grade

IP67

weight

≤46kg

structure

2P24S

type

Lithium iron phosphate

Cell model

LFR48168

Nominal voltage

76.8V

Core type

3.2V80Ah

Rated capacity

80Ah

BMS

DH24SA01(120A)

Maximum discharge current

120A(2C)

communication interface

GX14-5pin

Maximum charging current

80A(1C)

Discharge cut-off voltage

60V

cycle life

2000+

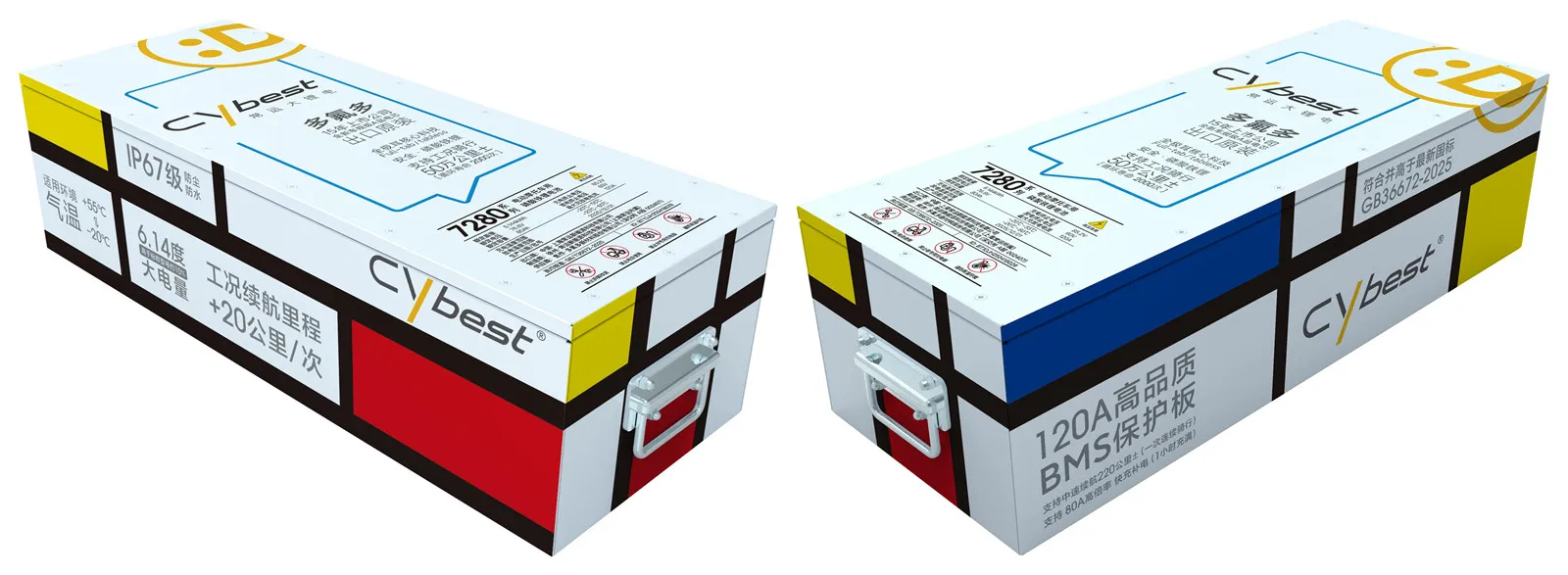

product-1600-587



Product Introduction and Highlights



The 72V80A lithium iron phosphate battery produced by CYBEST has outstanding advantages: it adopts 3.2V80Ah LFR48168 cell, 2P24S structure, the maximum discharge current is 120A, and it is suitable for ≤ 3000W electric motorcycle, with abundant power; The cycle life is more than 2000 times, the charging, discharging and storage temperature range is wide, and the weather resistance is strong; Waterproof grade reaches IP67, with 120A BMS protection, safe and reliable; It supports Bluetooth+RS485 near field communication and intelligent request charging. It is compact and easy to install. It is a high-quality choice for high-power electric motorcycle.



Production base: Benyun New Energy Technology Co., Ltd., located in the north area of Xuzhou Fengxian (Shangdian) High tech Zone, has a 2500 ㎡ dust-free workshop and an annual output of 10w sets of 4G intelligent lithium batteries. The backbone of technology development comes from Xingheng, Xinnengan and other technical teams. Electrical hardware is selected from the supply chain resources of large lithium battery manufacturers such as Ningde Times. Based on the complex and harsh application scenario of B-end power change, we focus on the design and manufacture of large lithium batteries with concentration and professionalism.



Company Introduction



CYBEST is an innovative technology enterprise focusing on the field of new energy short travel, committed to providing leading solutions and high-quality services for global short-travel tool vehicle applications. With technological innovation as the core driving force, the company has set up a R&D operation center in Changzhou, China, and established modern production and manufacturing bases in Shangqiu, Henan and Feng County, Xuzhou, forming an integrated industrial layout of "R&D + manufacturing". At the same time, the company actively expands the global market, setting up subsidiaries in Shenzhen, Dubai in the Middle East, Bangladesh and other places to build a business network covering domestic and foreign countries.



In 2013, it entered the overseas market, and for 8 consecutive years, the CYBEST driving product series became the first market share in India.

The tricycle rear axle produced by CYBEST is used for recreational tricycles, passenger tricycles, cargo tricycles and other tricycles; The lithium batteries produced by the company are used in two-wheeled electric vehicles or three-wheeled electric vehicles; The company produces intelligent battery charging and swapping cabinets; It supports customized adaptation to meet different models, and is a supplier of accessories for various tricycles or two-wheeled electric vehicle manufacturers.



CYBEST manufacturing factory strictly follows the ISO9001 quality management system, adheres to the concept of quality first, and promotes the upgrading of intelligent manufacturing. Introduce advanced automated production lines, build intelligent and information-based efficient production operation systems, and implement refined production management. With an annual production capacity of more than 10,000 units, quality control above industry standards ensures that every product reaches excellent quality. Through "intelligent" manufacturing, we not only improve production efficiency but also provide customers with a fast and reliable delivery guarantee for charging and swapping cabinets.



FAQ



Q: How to judge whether this lithium battery matches my electric car?

A: Please provide the brand, model or existing detailed size photos of your vehicle, and our engineers will confirm the precise fitting for you.

Q: How long is the warranty period of the product?

A: We provide quality assurance for standard products, and the specific period is determined according to the company's actual policies.

Q: Do you support small batch sample purchase or OEM/ODM cooperation?

A: Fully supported. We encourage sample testing and have rich OEM/ODM experience, which can be customized according to customer brand requirements.
