Electric vehicle 20-compartment intelligent charging and exchanging cabinet |
|||
|
Product model |
XYTE-D20-1.0 |
network |
4G Dual IOT card |
|
weight |
100kg |
Standby power supply |
Self-power supply of lithium battery in the cabin |
|
Cabinet body size |
720mm*500mm*1700mm |
Fire detection |
Temperature, smoke, water level, fire detection, door opening timeout |
|
connection |
AC220V |
Fire fighting and extinguishing |
Aerosol/water spray extinguishing |
|
Material of enclosure |
Sheet metal+surface spraying |
Rated power |
9.4KW |
|
Protection class |
IP54 |
Charging power supply |
54.6V8A*20 |
|
Temperature control mode |
Air duct diversion+air duct heat dissipation |
Charging connection |
2+6/2+4 |
|
Mode of interaction |
Voice, light prompt, sound and light alarm |
standby power |
≤30W |
|
Electric energy measurement |
LCD digital display, external display behind cabinet, platform meter reading |
Quality assurance |
2 Years |
|
Mode of power exchange |
IC card unlocking/NFC unlocking/code scanning unlocking+manual door opening |
Capacity cell size |
48V24Ah*20 184*156*300mm |
Product Introduction

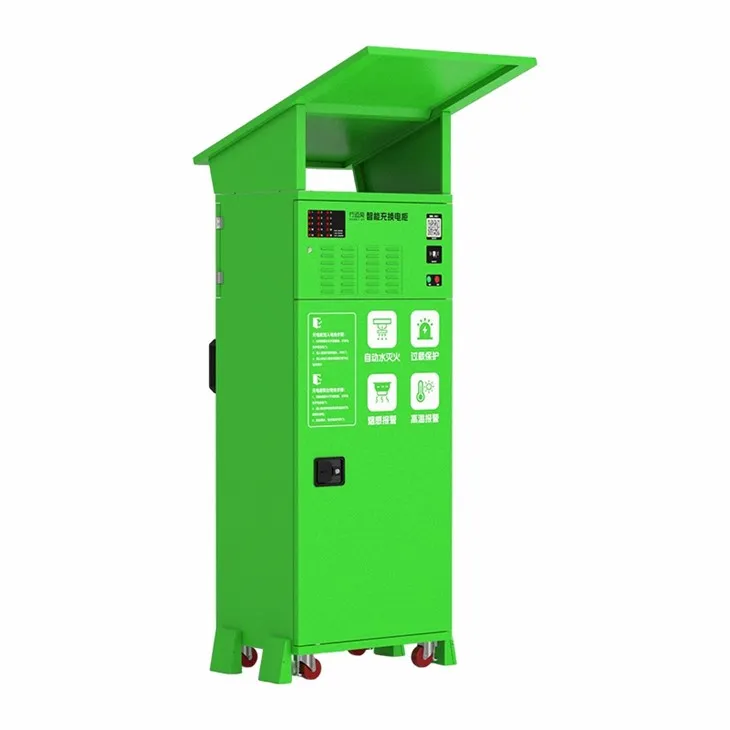

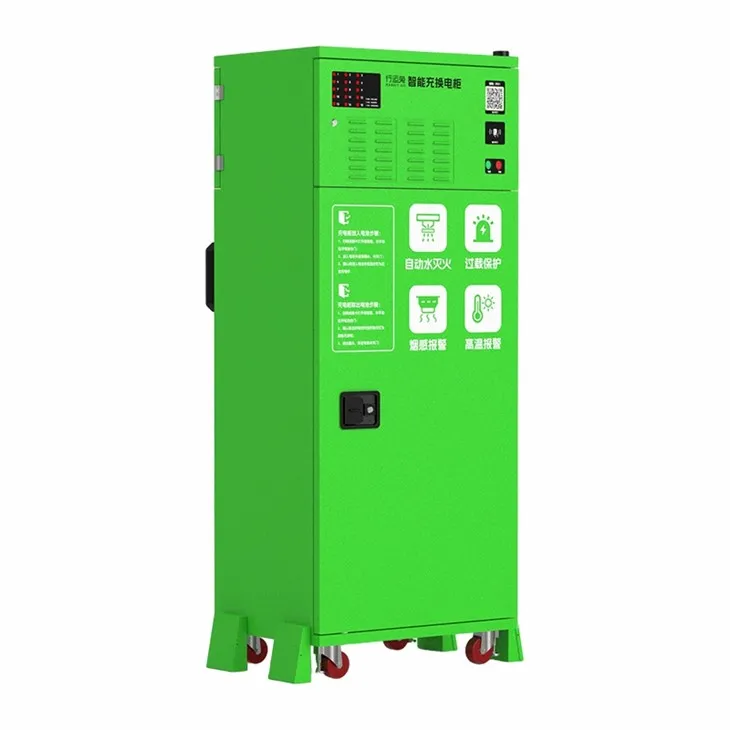

CYBEST's 20-bay shared intelligent charging and exchanging cabinet is a product aimed at improving the operation and maintenance efficiency and safe charging for the operator of shared electric bike. The charging and exchanging cabinet can meet the charging of 20 new national standard lithium batteries at a single time, support multiple door opening modes, 24 hours online supervision, no manual watch, save cost, and is equipped with multiple fire detection devices, meeting the industry safety standards.
Product parameters

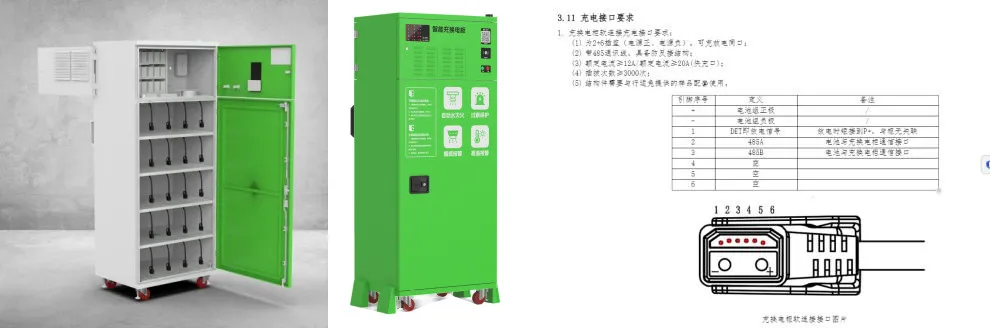

Large single door of battery compartment
Capable of charging 20 48V24A lithium batteries at a time, and supporting batch fast charging and power change
Door opening mode
Support IC card swiping, mobile NFC unlocking, network unlocking, manual mechanical door opening, and platform management of unlocking authority
Fire detection
Support temperature, smoke, water level, fire detection, overload protection, door opening overtime and other alarm devices
Convenient maintenance
It can be installed on the ground by one person. Maintenance of front door of electrical compartment, front door of battery compartment and rear door of strong current.
Company Introduction
CYBEST is an innovative technology enterprise focusing on the field of new energy short travel, committed to providing leading solutions and high-quality services for global short-travel tool vehicle applications. With technological innovation as the core driving force, the company has set up a R&D operation center in Changzhou, China, and established modern production and manufacturing bases in Shangqiu, Henan and Feng County, Xuzhou, forming an integrated industrial layout of "R&D + manufacturing". At the same time, the company actively expands the global market, setting up subsidiaries in Shenzhen, Dubai in the Middle East, Bangladesh and other places to build a business network covering domestic and foreign countries.
In 2013, it entered the overseas market, and for 8 consecutive years, the CYBEST driving product series became the first market share in India.
The tricycle rear axle produced by CYBEST is used for recreational tricycles, passenger tricycles, cargo tricycles and other tricycles; The lithium batteries produced by the company are used in two-wheeled electric vehicles or three-wheeled electric vehicles; The company produces intelligent battery charging and swapping cabinets; It supports customized adaptation to meet different models, and is a supplier of accessories for various tricycles or two-wheeled electric vehicle manufacturers.
CYBEST manufacturing factory strictly follows the ISO9001 quality management system, adheres to the concept of quality first, and promotes the upgrading of intelligent manufacturing. Introduce advanced automated production lines, build intelligent and information-based efficient production operation systems, and implement refined production management. With an annual production capacity of more than 10,000 units, quality control above industry standards ensures that every product reaches excellent quality. Through "intelligent" manufacturing, we not only improve production efficiency but also provide customers with a fast and reliable delivery guarantee for charging and swapping cabinets.
