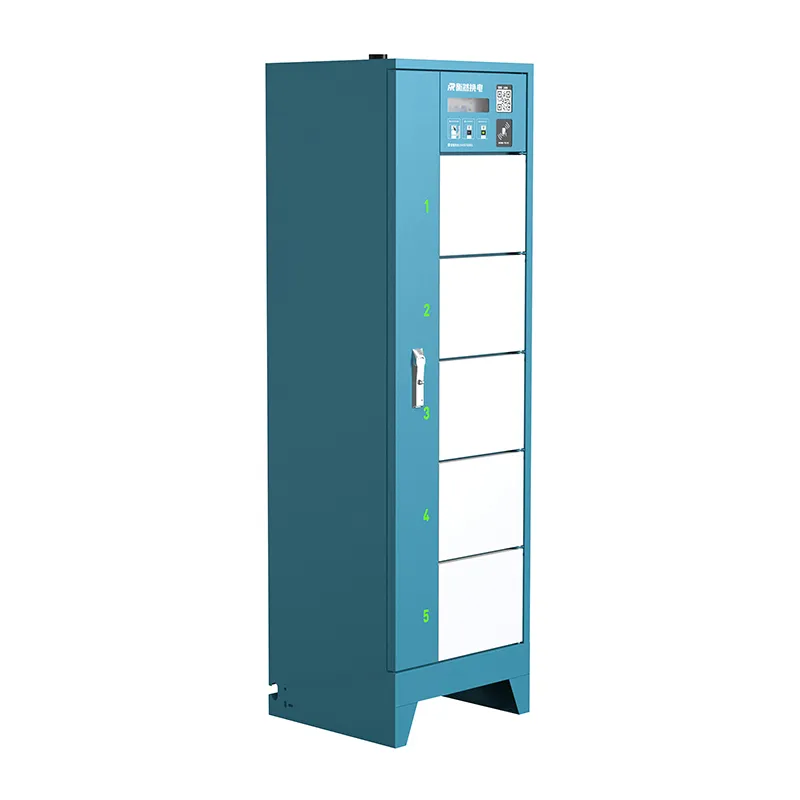

Electric vehicle 5-compartment intelligent battery swapping cabinet |
|||
|
Product model |
XYTD-05-6.0/6.1 |
network |
4G Dual IOT card |
|
weight |
90kg |
Standby power supply |
Self-power supply of lithium battery in the cabin |
|
Cabinet body size |
500mm*440mm*1680mm |
Fire detection |
Temperature, smoke, water level, fire detection, door opening timeout |
|
connection |
AC220V |
Fire fighting and extinguishing |
Aerosol fire extinguishing*5 |
|
Material of enclosure |
Sheet metal+surface spraying |
Rated power |
4.4KW/7.2KW |
|
Protection class |
IP54 |
Charging power supply |
Output 800W15A/1300W20A * 5, protocol charging |
|
Temperature control mode |
Automatic heating, automatic multi-duct cooling |
Charging connection |
2+6 |
|
Mode of interaction |
Voice and light prompts |
standby power |
≤30W |
|
Electric energy measurement |
LCD digital display, cabinet side external display, leakage protection |
Quality assurance |
2 Years |
|
Mode of power exchange |
Code scanning power exchange, short number power exchange, IC card power exchange and NFC power exchange |
Capacity cell size |
240*200*410mm |
Product Introduction
CYBEST's 5-bay intelligent power exchange cabinet is a product for intelligent power exchange of two-wheel electric vehicle batteries in urban logistics distribution industry. The power exchange cabinet adopts two charging modes: wire interface and wireless tail plug. 485 communication mode is optional for the cabinet body, which supports multiple interactive communication such as intelligent code scanning at the user end or power exchange by swiping NFC/IC card, and supports real-time monitoring on the remote cloud platform; The external electric meter of the switch cabinet is equipped with multiple safety protection guarantees such as smoke sensing, temperature sensing and temperature control, fire fighting, water immersion power failure, lightning protection and leakage prevention.
Product parameters
Panoramic interaction
NFC/card swiping/code scanning/short number and other interactive forms are built in the battery to ensure that the user can change the power anytime and anywhere;
Super large compartment
Enlarge and deepen the compartment, with most battery specifications in the market; At the same time, the tilt pulley is designed to maximally save efforts to ensure that the battery reaches the specified charging position.
Smart fast charging
Cybest provides unique fast charging technology, supports 800W/1300W fast charging, improves the charging efficiency by 1-2.5 times compared with the conventional switch cabinet in the market, and gives full play to the utilization efficiency of switch cabinet;
Tail plug/line charge design
The cabin body realizes the tail plug charging mode, and the charging interface adopts the fixed hard plug charging socket, which can withstand 10000 times of power change plug; At the same time, it is compatible with line charging and matches most batteries in the market;
Temperature control management
Unique design of large air duct and multiple pipes ensures high temperature lifting in summer and temperature in the bin can be controlled below 45 ℃; A heating plate can be added in winter to ensure that the temperature in the bin is maintained at about 20 ° C under low temperature and ensure the charging efficiency;
Front door maintenance
The front door of electrical parts is arranged and pulled out for maintenance, the maintenance space is large, and the maintenance rate of accessories is 90%+
Company Introduction
CYBEST is an innovative technology enterprise focusing on the field of new energy short travel, committed to providing leading solutions and high-quality services for global short-travel tool vehicle applications. With technological innovation as the core driving force, the company has set up a R&D operation center in Changzhou, China, and established modern production and manufacturing bases in Shangqiu, Henan and Feng County, Xuzhou, forming an integrated industrial layout of "R&D + manufacturing". At the same time, the company actively expands the global market, setting up subsidiaries in Shenzhen, Dubai in the Middle East, Bangladesh and other places to build a business network covering domestic and foreign countries.
In 2013, it entered the overseas market, and for 8 consecutive years, the CYBEST driving product series became the first market share in India.
The tricycle rear axle produced by CYBEST is used for recreational tricycles, passenger tricycles, cargo tricycles and other tricycles; The lithium batteries produced by the company are used in two-wheeled electric vehicles or three-wheeled electric vehicles; The company produces intelligent battery charging and swapping cabinets; It supports customized adaptation to meet different models, and is a supplier of accessories for various tricycles or two-wheeled electric vehicle manufacturers.
CYBEST manufacturing factory strictly follows the ISO9001 quality management system, adheres to the concept of quality first, and promotes the upgrading of intelligent manufacturing. Introduce advanced automated production lines, build intelligent and information-based efficient production operation systems, and implement refined production management. With an annual production capacity of more than 10,000 units, quality control above industry standards ensures that every product reaches excellent quality. Through "intelligent" manufacturing, we not only improve production efficiency but also provide customers with a fast and reliable delivery guarantee for charging and swapping cabinets.
